CI/CD integration with the Buf GitHub Action#
The buf-action GitHub Action makes it easy to run the Buf CLI within a workflow to check for build, lint, format, and breaking change errors, and automatically publish schema changes to the Buf Schema Registry (BSR).
If you're not using GitHub, the Buf CLI is easy to integrate into other CI/CD systems.
TL;DR#
To use the Buf GitHub Action, add a .github/workflows/buf-ci.yaml
file to your repository with the following
content:
name: Buf CI
on:
push:
pull_request:
types: [opened, synchronize, reopened, labeled, unlabeled]
delete:
permissions:
contents: read
pull-requests: write
jobs:
buf:
runs-on: ubuntu-latest
steps:
- uses: actions/checkout@v4
- uses: bufbuild/buf-action@v1
with:
# Publishing schema changes to the BSR requires a BSR authentication token.
token: ${{ secrets.BUF_TOKEN }}
# Include this line if you only want to set up the Action and do nothing else.
# setup_only: true
# Include a GitHub token to ensure API requests aren't rate limited.
# github_token: ${{ secrets.GITHUB_TOKEN }}
This default configuration:
- Uses
buf push
to push named modules to the BSR when you push a Git commit, tag, or branch to GitHub. - Runs all Buf checks (
build
,lint
,format
, andbreaking
), posting a summary comment for any pull request. - Archives corresponding labels in the BSR when you delete a Git branch or tag.
Authentication and BSR Tokens#
To publish schema changes to the BSR, the Buf GitHub Action requires a BSR authentication token for "push" and "archive label" steps. Set the token
parameter to its value. We recommend storing the token as a GitHub secret. A post-action step will logout from the BSR to ensure the token is not stored in the .netrc
file.
Common workflows#
The Action is designed to suit a variety of workflows, often by configuring parameters, tailoring its configuration to suit your needs. Some of the most common workflows are documented below, and there's over a dozen complete buf-ci.yaml
examples in the Action's GitHub repo.

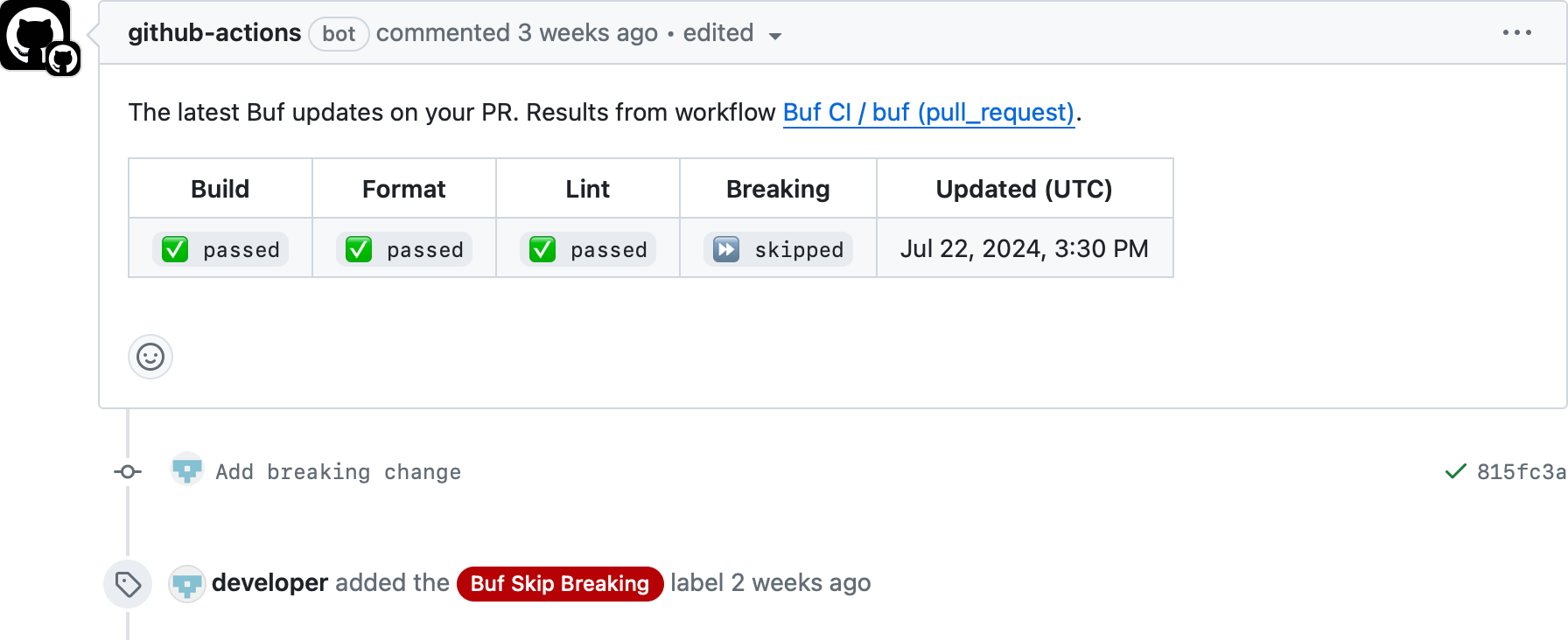

Skip breaking change detection using labels#
By default, the action runs the breaking change detection step on every pull request.
To skip this step for a specific pull request, you can add the buf skip breaking
label to the PR.
This is useful for cases where breaking changes are intentional or when you want to bypass the check temporarily, such as during prototyping or non-production changes.
Using labels provides a transparent way to bypass breaking change detection while making the decision visible and documented in the pull request.
Create the buf skip breaking
label#
To enable skipping the breaking change detection step, you first need to add a label named buf skip breaking
to your GitHub repository.
This can be done through the GitHub UI on the current PR or via the repository settings.
For the current PR, click on the "Labels" section in the right sidebar and select "Edit label".
Add a new label with the name buf skip breaking
and a color of your choice.
See GitHub documentation on managing labels for more information.
Ensure the workflow responds#
For the action to re-run checks when the buf skip breaking
label is added or removed, ensure your workflow file includes the labeled
and unlabeled
event types in the pull_request
trigger.
This is already included in the default workflow configuration:
on:
pull_request:
types: [opened, synchronize, reopened, labeled, unlabeled]
Disabling the ability to skip breaking change checks#
To disable the ability to skip breaking change checks via a label, set the breaking
parameter to the value ${{ github.event_name == 'pull_request' }}
so it runs on all PRs.
See examples/disable-skip/buf-ci.yaml for an example.
Skip steps using commit messages#
To conditionally run steps based on user input, use the GitHub action context.
For example, to disable breaking change detection on commits with messages containing buf skip breaking
:
- uses: bufbuild/buf-action@v1
with:
breaking: |
contains(fromJSON('["push", "pull_request"]'), github.event_name) &&
!contains(github.event.head_commit.message, 'buf skip breaking')
See GitHub Actions job context documentation.
Disable specific steps#
To disable parts of the workflow, each step corresponds to a boolean flag in the parameters.
For example, to disable formatting, set the parameter format
to false
:
See Parameters for all available parameters.
Customize triggers for steps#
To trigger steps on different events, use the GitHub action context to determine the event type.
For example, to run format
on both push
and pull_request
:
- uses: bufbuild/buf-action@v1
with:
format: ${{ contains(fromJSON('["push", "pull_request"]'), github.event_name) }}
See GitHub Actions expressions documentation.
Only push when APIs change#
To push only when your module changes, restrict the push step for any changes to buf
related files.
This can be achieved by using the paths
filter on the push
event:
push:
paths:
- '**.proto'
- '**/buf.yaml'
- '**/buf.lock'
- '**/buf.md'
- '**/README.md'
- '**/LICENSE'
See the push on changes example for a full configuration file.
Configure summary comment#
The Action reports the status of the most recent checks in a comment on each pull request.
To disable the comment, set the pr_comment
parameter to false
and remove the pull_request: write
permission because it's no longer required.
name: Buf CI
on:
push:
pull_request:
types: [opened, synchronize, reopened, labeled, unlabeled]
delete:
permissions:
contents: read
- pull-requests: write
jobs:
buf:
runs-on: ubuntu-latest
steps:
- uses: actions/checkout@v4
- uses: bufbuild/buf-action@v1
with:
token: ${{ secrets.BUF_TOKEN }}
+ pr_comment: false
Configuration#
Parameters#
To customize the behavior of the Action, use parameters in the workflow file, adding them to the with
section:
- uses: bufbuild/buf-action@v1
with:
# Set up the Action and do nothing else.
setup_only: false
Parameter | Description | Default |
---|---|---|
version |
Version of the buf CLI to use. |
Latest version |
checksum |
Checksum of the buf CLI to verify (sha256). |
|
token |
API token for logging into the BSR. | |
domain |
Domain for logging into the BSR, enterprise only. | buf.build |
input |
Input for the buf command. |
|
paths |
Limit to specific files or directories (separated by newlines). | |
exclude_imports |
Exclude files imported by the target modules. | False |
exclude_paths |
Exclude specific files or directories, e.g. "proto/a/a.proto", "proto/a" (separated by newlines). | |
pr_comment |
Comment the results on the pull request. The workflow and job name combination must be unique. | Only on pull requests (non forks) |
format |
Whether to run the formatting step. | Runs on pushes to Git PR |
lint |
Whether to run the linting step. | Runs on pushes to Git PR |
breaking |
Whether to run the breaking change detection step. | Runs on pushes to Git PR |
breaking_against |
Input to compare against. | Base of the PR or the commit before the event |
breaking_against_registry |
Whether to use the Buf Schema Registry for breaking change detection. If true, the breaking_against parameter is ignored. |
False |
push |
Whether to run the push step. | Runs on Git pushes (non forks) |
push_disable_create |
Disables repository creation if it does not exist. | False |
archive |
Whether to run the archive step. | Runs on Git deletes (non forks) |
setup_only |
Setup only the buf environment, optionally logging into the BSR, but without executing other commands. |
|
github_actor |
GitHub actor for API requests. | Actor from GitHub context |
github_token |
GitHub token for API requests. Ensures requests aren't rate limited | Token from GitHub context |
public_github_token |
GitHub token for github.com. Must be set when running on a private GitHub Enterprise instance to authenticate requests, otherwise ignored. |
Pinning the buf
version#
For reproducible builds, you can pin to an explicit version of buf
by setting version
:
If no version is specified in the workflow config, the action resolves the version in this order of precedence:
- A version specified in the environment variable
${BUF_VERSION}
. - Any version of
buf
already installed on the runner. - The latest version of the
buf
binary from the official releases on GitHub.
Specifying an input directory#
To run the action for inputs not declared at the root of the repository,
set the parameter input
to the directory of your buf.yaml
file.
Breaking change detection by default will use the input
value as a subdirectory for the breaking against value.
To customize this behavior, set the parameter breaking_against
to the desired input.
- uses: bufbuild/buf-action@v1
with:
input: <path/to/module>
breaking_against: ${{ github.event.repository.clone_url }}#format=git,commit=${{ github.event.pull_request.base.sha }},subdir=<path/to/module>
Alternatively, you can check out the base for the breaking comparison to a local folder
and then set the value of breaking_against
to the path of the base.
- uses: actions/checkout@v4
with:
path: head
- uses: actions/checkout@v4
with:
path: base
ref: ${{ github.event.pull_request.base.sha }}
- uses: bufbuild/buf-action@v1
with:
input: head/<path/to/module>
breaking_against: base/<path/to/module>
For more information on inputs, see the Buf Inputs Reference.
Running setup only#
To only set up the action without running any commands, set the parameter setup_only
to true
.
This installs buf
, optionally logging in to the schema registry, but no additional commands are run.
Subsequent steps have buf
available in their $PATH
and can invoke buf
directly.
- uses: bufbuild/buf-action@v1
with:
setup_only: true
- run: buf build --error-format github-actions
See the setup only example for a full configuration file.
Migrating from individual Buf actions#
If you're currently using any of our individual Actions (buf-setup-action, buf-breaking-action, buf-lint-action, buf-push-action), we recommend migrating to this consolidated action that has additional capabilities. Benefits include:
- Less configuration and setup, with built-in best practices.
- Enhanced integration with Git data when pushing to the BSR.
- Status comments on pull requests.
- Easy configuration for custom behavior.
See the migration guide for more information.
Debugging#
To debug the action, rerun the workflow with debug logging enabled.
This runs all buf
commands with the --debug
flag.
See the re-run jobs with debug logging for more information.
